With high capacity, high performance, German design and superior quality, the SmartQube Model R X500 is the most innovative coffee machine to date. SmartQube’s IoT Cloud offers you the complete package: track and analyse live data, monitor machine status and beverage consumption, manage maintenance, adjust the recipes and personalise the videos remotely.

Powdered Milk

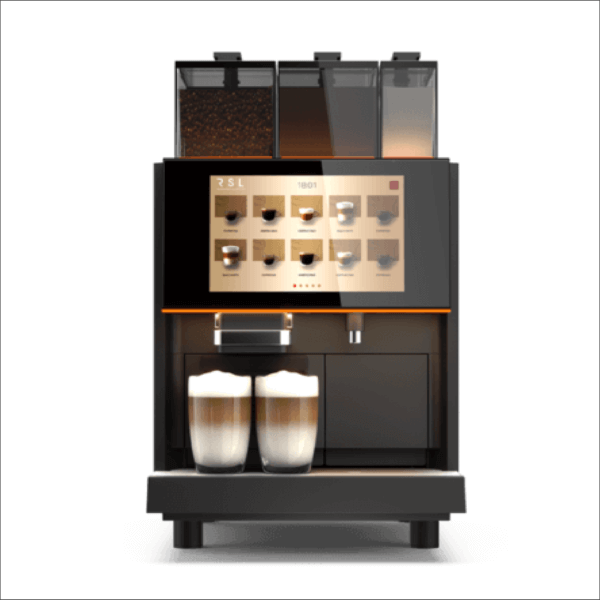

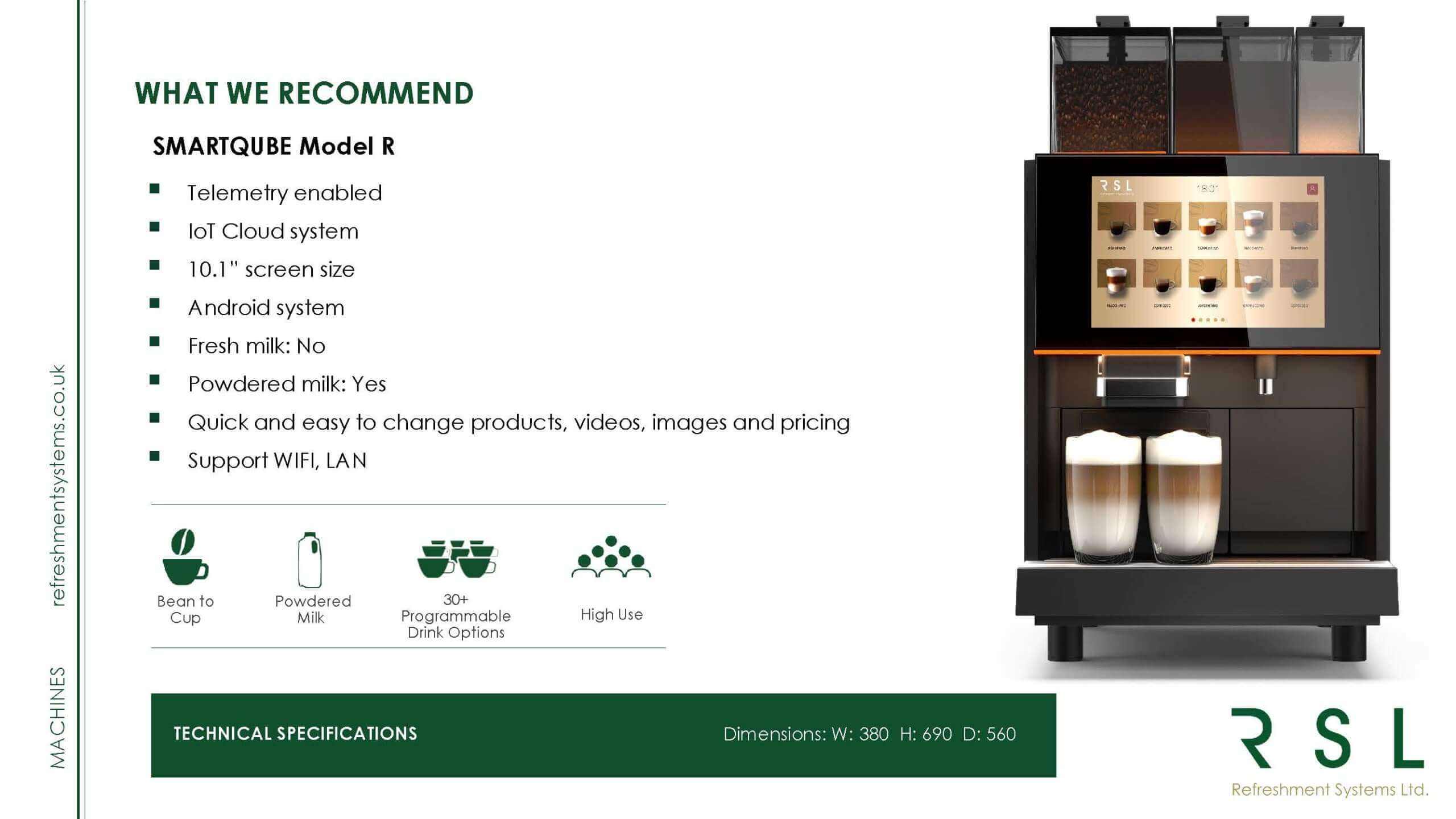

SMARTQUBE Model R: Features

Your Beverages Options

More than 30 drinks can be enjoyed at the touch of a button.

Technical Data

10.1″ screen size
Android System
Bean hopper capacity: 1*1200g
Fresh milk: No
Powdered milk: Yes
Topping hopper capacity: 1500g + 1200g
Programmable video for company logo and advertisement
Voltage/ Frequency: 220-240V – 50/60HZ
Heating power: 2700W
Dimension: D:560mm W:380mm H:690mm
Weight: 30kg
Espresso brewer capacity: 5~16g
Boiler capacity: 0.7L
Water tank volume: 4L
Drip tray capacity: 2L
Waste bin full (counter): 45 portions
Coffee spout height: Level 1=100mm level 2=160mm
Water supply: Fixed water + Barrelled water + Tank water
Base colour: Black, silver & golden
Option to add customisable graphics to suit your company branding

Data Sheet
